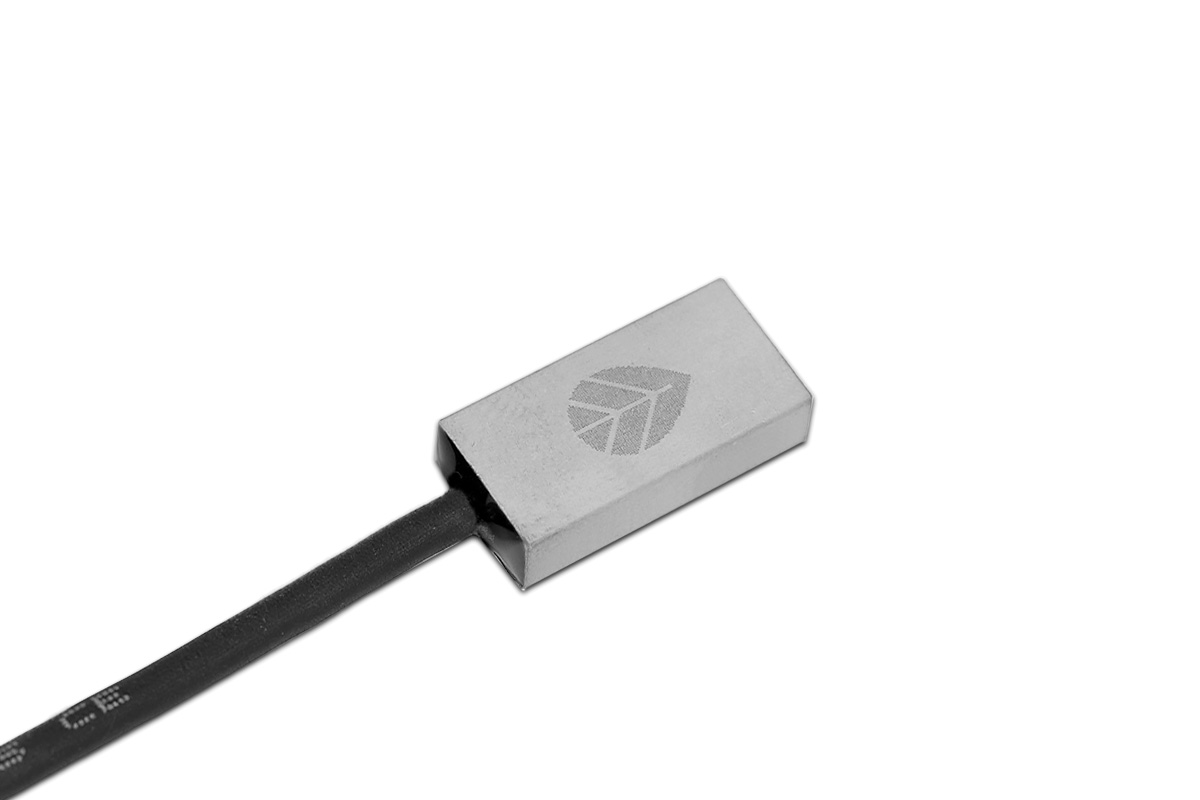

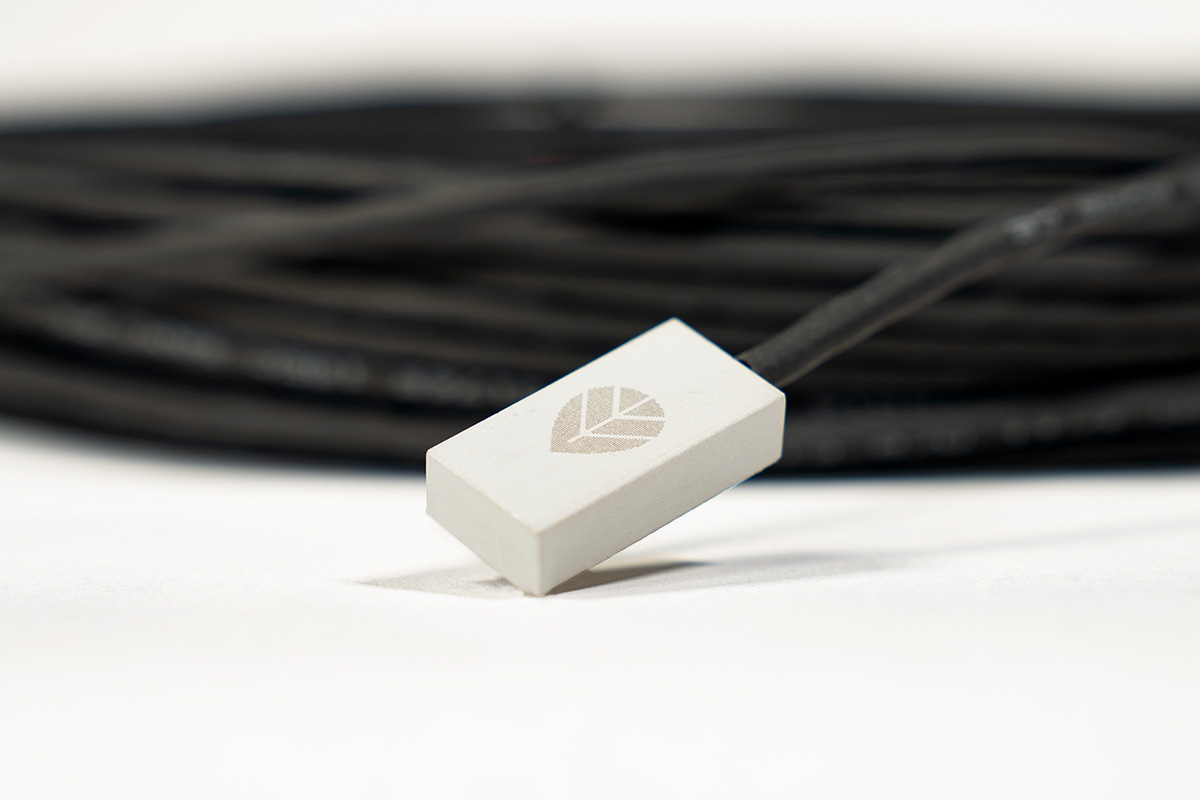

NRG PVT1 PV Temperature Sensor

DETAILS

Because temperature has a significant impact on the performance of operational PV solar systems, PV module temperature is one of the most critical measurements to monitor and analyze.

Purpose-built to withstand the elements and accurately sense PV module temperature, our 0.2 C interchangeable 10K NTC Thermistor sensor ensures Class A measurements per IEC-61724-1:2017. The PVT1’s 4-wire cable configuration delivers accurate measurement regardless of cable length when used with our SymphoniePRO Data Logger and enables flexible positioning on PV arrays.

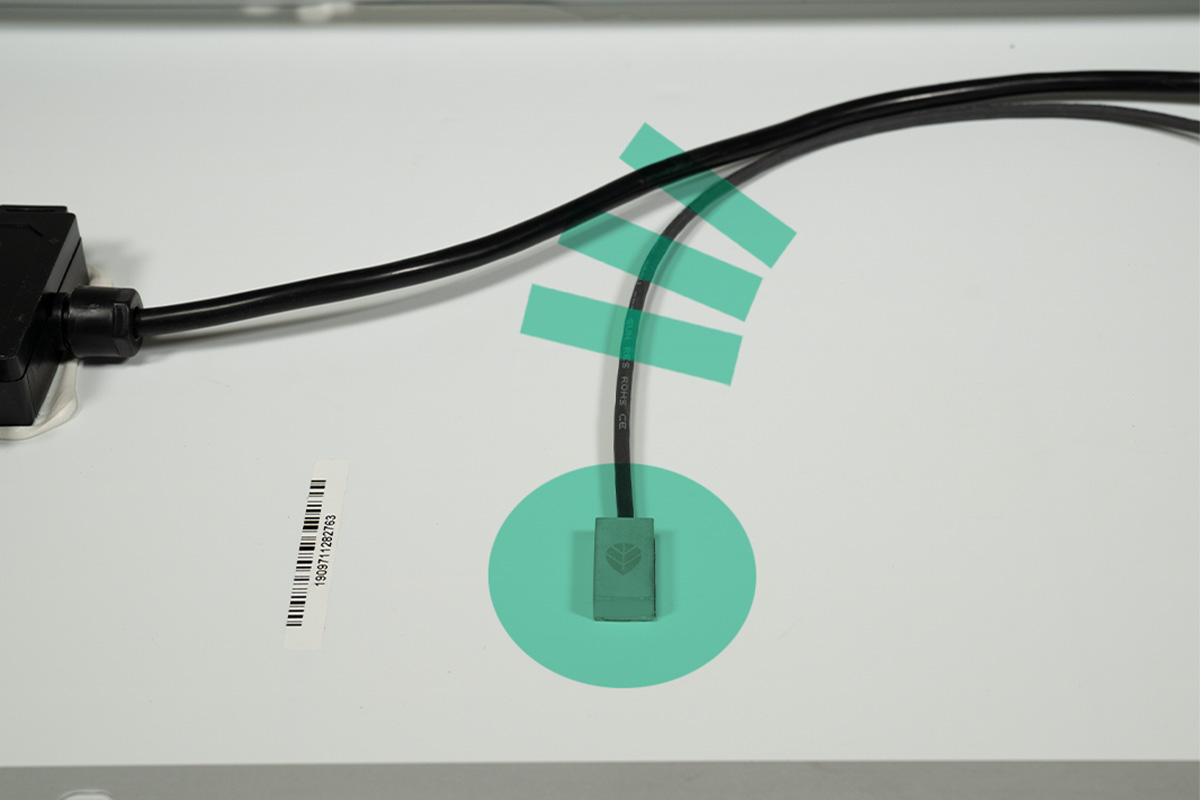

Each sensor comes with double-sided adhesive on its compact housing as well as a specially designed adhesive system to secure both sensor and cable in place for easy and repeatable installation as well as long-term performance.

SPECIFICATION

  3m (#9421) 10m (#9422) 20m (#9423) 50m (#9424) 100M (#9426)
Description
Sensor type 10 kΩ NTC thermistor 10 kΩ NTC thermistor 10 kΩ NTC thermistor 10 kΩ NTC thermistor 10 kΩ NTC thermistor
Applications
  • Solar resource monitoring
  • Surface temperature measurement
  • Solar resource monitoring
  • Surface temperature measurement
  • Solar resource monitoring
  • Surface temperature measurement
  • Solar resource monitoring
  • Surface temperature measurement
  • Solar resource monitoring
  • Surface temperature measurement
Sensor range -55 °C to 150 °C (-67 °F to 302 °F) -55 °C to 150 °C (-67 °F to 302 °F) -55 °C to 150 °C (-67 °F to 302 °F) -55 °C to 150 °C (-67 °F to 302 °F) -55 °C to 150 °C (-67 °F to 302 °F)
Instrument compatibility NRG SymphoniePRO Data Logger NRG SymphoniePRO Data Logger NRG SymphoniePRO Data Logger NRG SymphoniePRO Data Logger NRG SymphoniePRO Data Logger
Output signal
Transfer function Steinhart-Hart Coefficients:
  • A = 0.001032
  • B = 0.0002387
  • C = 0.000000158

    Beta Value: 3694 K
    Beta Value Tolerance: 0.80%
 Steinhart-Hart Coefficients:
  • A = 0.001032
  • B = 0.0002387
  • C = 0.000000158

    Beta Value: 3694 K
    Beta Value Tolerance: 0.80%
 Steinhart-Hart Coefficients:
  • A = 0.001032
  • B = 0.0002387
  • C = 0.000000158

    Beta Value: 3694 K
    Beta Value Tolerance: 0.80%
 Steinhart-Hart Coefficients:
  • A = 0.001032
  • B = 0.0002387
  • C = 0.000000158

    Beta Value: 3694 K
    Beta Value Tolerance: 0.80%
 Steinhart-Hart Coefficients:
  • A = 0.001032
  • B = 0.0002387
  • C = 0.000000158

    Beta Value: 3694 K
    Beta Value Tolerance: 0.80%
Accuracy ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F) ± 0.2 °C from 0 to 70 °C (±0.36 °F from 32 to 158 °F)
Power requirements
Supply current 15 μA maximum (supplied by logger) 15 μA maximum (supplied by logger) 15 μA maximum (supplied by logger) 15 μA maximum (supplied by logger) 15 μA maximum (supplied by logger)
Installation
Mounting Adhere to back of PV module (adhesive tape included) Adhere to back of PV module (adhesive tape included) Adhere to back of PV module (adhesive tape included) Adhere to back of PV module (adhesive tape included) Adhere to back of PV module (adhesive tape included)
Environmental
Operating temperature range -40 °C to 105 °C (-40 °F to 221 °F) -40 °C to 105 °C (-40 °F to 221 °F) -40 °C to 105 °C (-40 °F to 221 °F) -40 °C to 105 °C (-40 °F to 221 °F) -40 °C to 105 °C (-40 °F to 221 °F)
Operating humidity range 0 to 100% RH 0 to 100% RH 0 to 100% RH 0 to 100% RH 0 to 100% RH
Physical
Connections Wire leads:
  • Excitation (red wire)
  • Ground (black wire)
  • Signal + (white wire)
  • Signal - (green wire)
  • Drain wire for earth ground
 Wire leads:
  • Excitation (red wire)
  • Ground (black wire)
  • Signal + (white wire)
  • Signal - (green wire)
  • Drain wire for earth ground
 Wire leads:
  • Excitation (red wire)
  • Ground (black wire)
  • Signal + (white wire)
  • Signal - (green wire)
  • Drain wire for earth ground
 Wire leads:
  • Excitation (red wire)
  • Ground (black wire)
  • Signal + (white wire)
  • Signal - (green wire)
  • Drain wire for earth ground
 Wire leads:
  • Excitation (red wire)
  • Ground (black wire)
  • Signal + (white wire)
  • Signal - (green wire)
  • Drain wire for earth ground
Cable length 3.0 m (9.8 ft) 10.0 m (33 ft) 20.0 m (66 ft) 50.0 m (164 ft) 100.0 m (328 ft)
Weight 46.7 g (0.10 lbs) 156.9 g (0.35 lbs) 313.8 g (0.69 lbs) 790 g (1.74 lbs) 1637 g (3.61 lbs)
Dimensions Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick Probe only: 25 mm (1") long x 12.7 mm (0.5") width x 6.2 mm (.25") thick
Materials
Cable 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket 4 conductor 28 AWG, with foil shield and drain wire, PUR jacket
Probe Aluminum, epoxy filled Aluminum, epoxy filled Aluminum, epoxy filled Aluminum, epoxy filled Aluminum, epoxy filled
