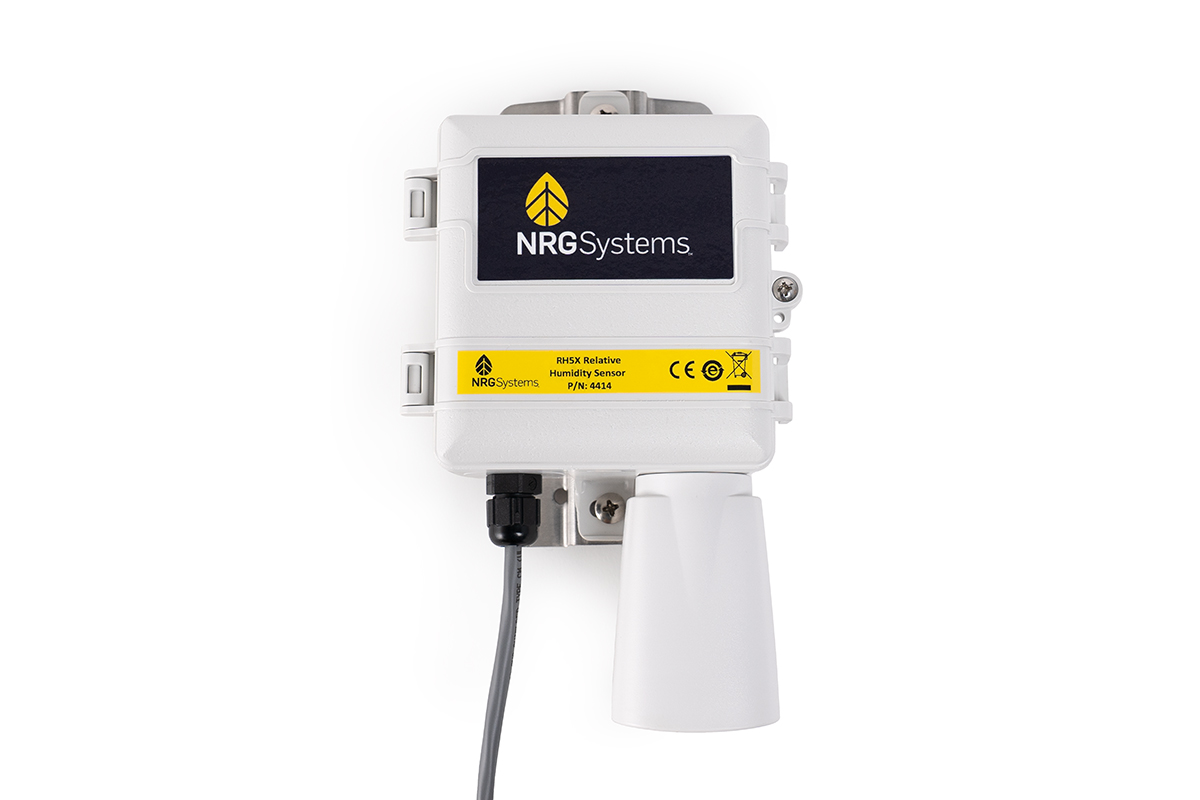

NRG RH5X Relative Humidity Sensor - Solar

DETAILS

The NRG RH5X sensor is compatible with all Symphonie series data loggers when equipped with an NRG iPack and either a Symphonie® SCM Card (SCM #3156, used with SymphoniePLUS®3 Data Logger and older) or a Pro Signal Conditioning Module (P-SCM #9132, used with SymphoniePRO® Data Logger when channels 16-19 are unavailable).

The RH5X features a polymer resistor sensor, which provides excellent linearity and sensitivity with fast response time and long-term stability. It mounts to the underside of a shelter box and includes 1.5 m (5’) of cable, a mounting bracket, and one hose clamp.

A calibrated version, the RH5XC, is available. The RH5XC comes with a calibration certificate from a NIST-traceable humidity chamber, providing slope and offset values that can be used to configure your corresponding logger channel.
