POA BRACKET | PYRANOMETER + REFERENCE CELL, SQUARE TT + ROUND TT, ISOLATED
DETAILS
NRG's latest brackets simplify the installation of your chosen pyranometer and reference cell sensor in a plane-of-array position on square and round torque tubes for tracked arrays. This alignment facilitates accurate monitoring of solar energy availability, system performance, soiling effects, and enables effective analysis and optimization of solar energy systems.
Compatible sensor models include the NRG R1 Pyranometer, the old and new generation body designs from Hukseflux, as well as Kipp & Zonen’s CMP / SMP / SUV line.
SPECIFICATION
| PYRANOMETER + REFERENCE CELL, SQUARE TT, ISOLATED (#17830) | PYRANOMETER + REFERENCE CELL, ROUND TT, ISOLATED (#18768) | |
|---|---|---|
| Description | ||
| Applications | Isolated aluminum mount for side by side pyranometers & reference cells to trackered arrays (All square and octagonal torque tubes) | Isolated aluminum mount for side by side pyranometers & reference cells to all trackered array of any type |
| Sensor compatibility | NRG R2 Pyranometer Hukseflux SR30, 20, 05 Kipp and Zonen SUV/CUV5 Reference cells: IMT Digital, IMT Analog, RC18 |
NRG R2 Pyranometers Hukseflux SR 30, 20, 05 Kipp and Zonen SUV/CUV5 Reference cells: IMT Digital, IMT Analog, RC18 |
| Installation | ||
| Mounting | Clamps to torque tube using a top and bottom plate and 7" bolts (3/8" HW) | Clamps to torque tube using a 5" U-bolt |
| Tools required | M5 hex & M4 hex 1/2" nut driver & 7/16" nut driver & 9/16" nut driver & 5/16" nut driver Spirit or digital level Refer to installation manual for details/sensor manual for sensor specific details |
M5 hex & M4 hex 1/2" nut driver & 7/16" nut driver & 9/16" nut driver spirit or digital level Refer to installation manual for details/sensor manual for sensor specific details |
| Recommended for installation | Antiseize | Antiseize |
| Physical | ||
| Weight | 1.6 lbs | 1.6 lbs |

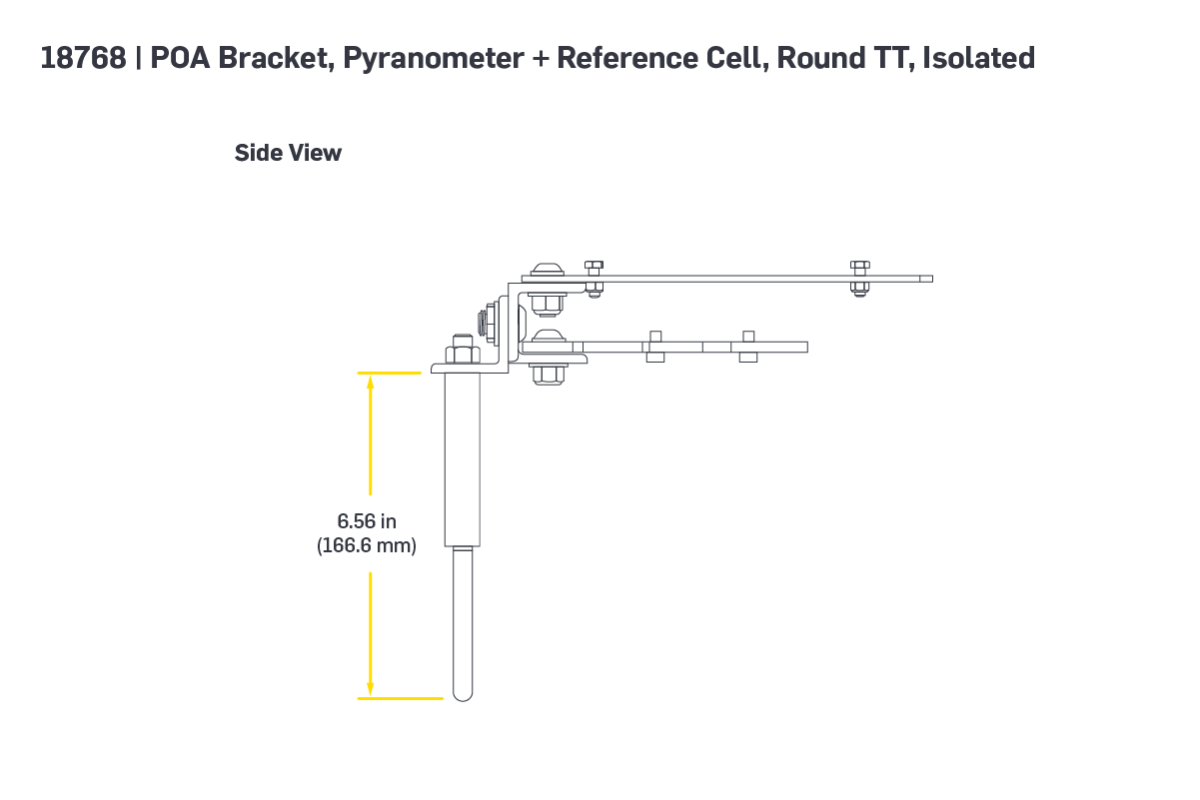

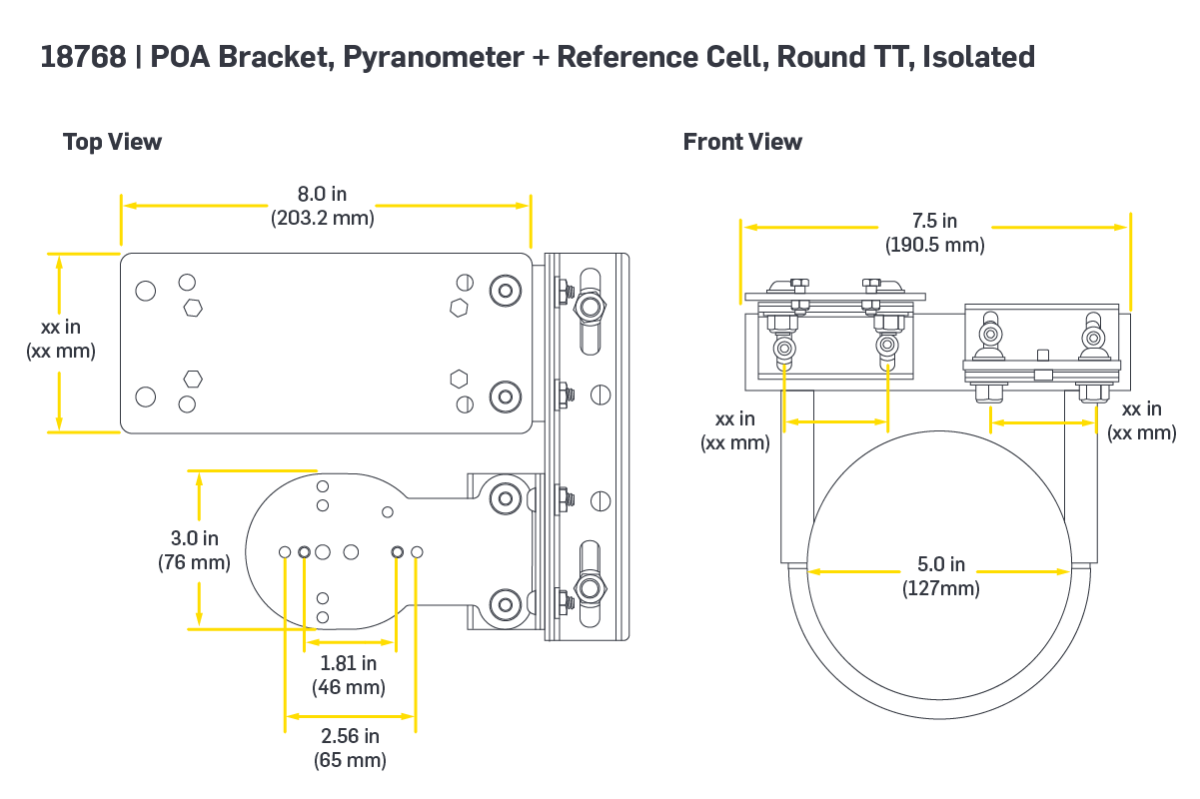

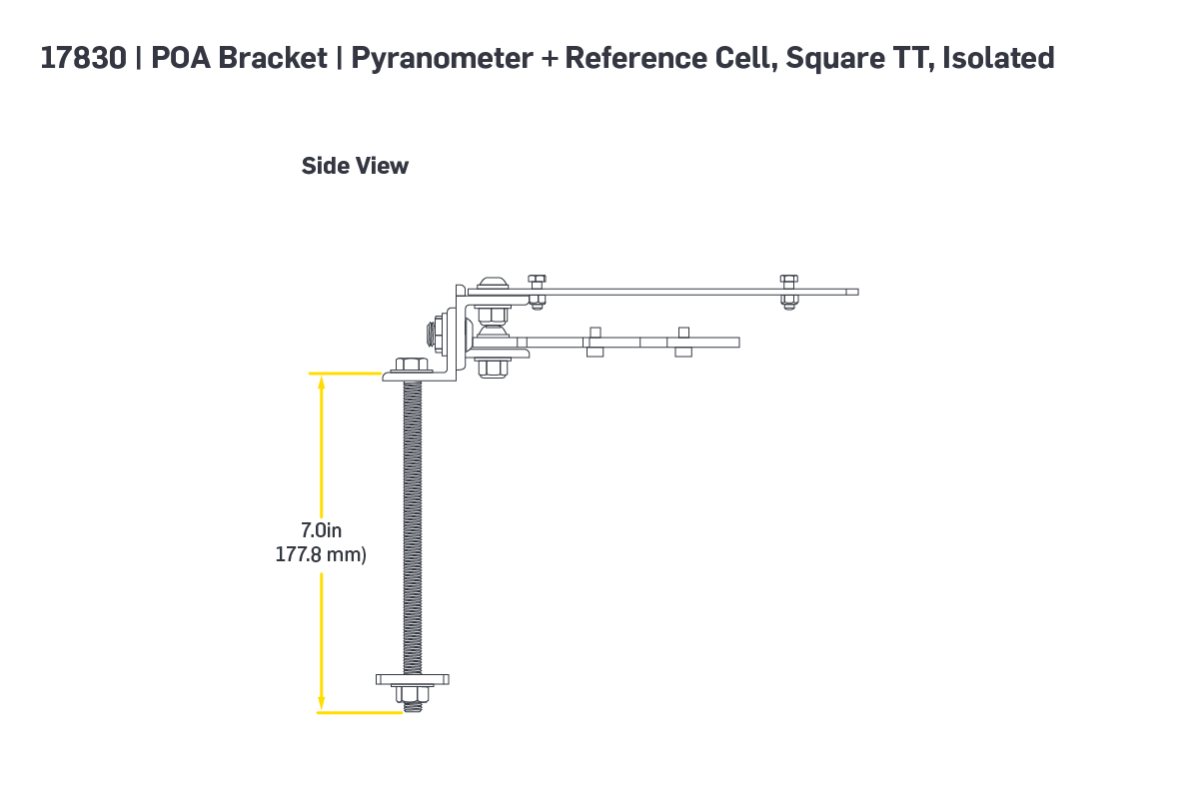

| Boom diameter | Works with torque tube min 4 inches (101mm) max 6 inches (150mm) | Works with 5" torque tube |

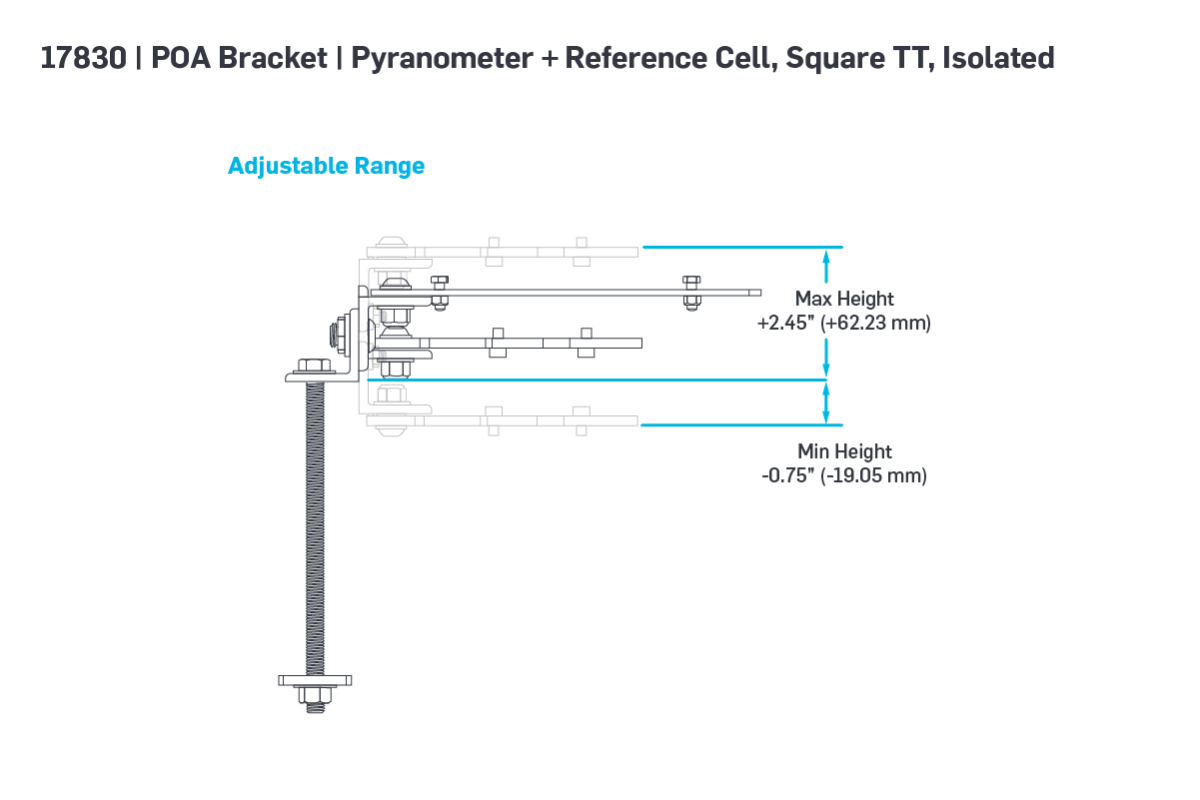

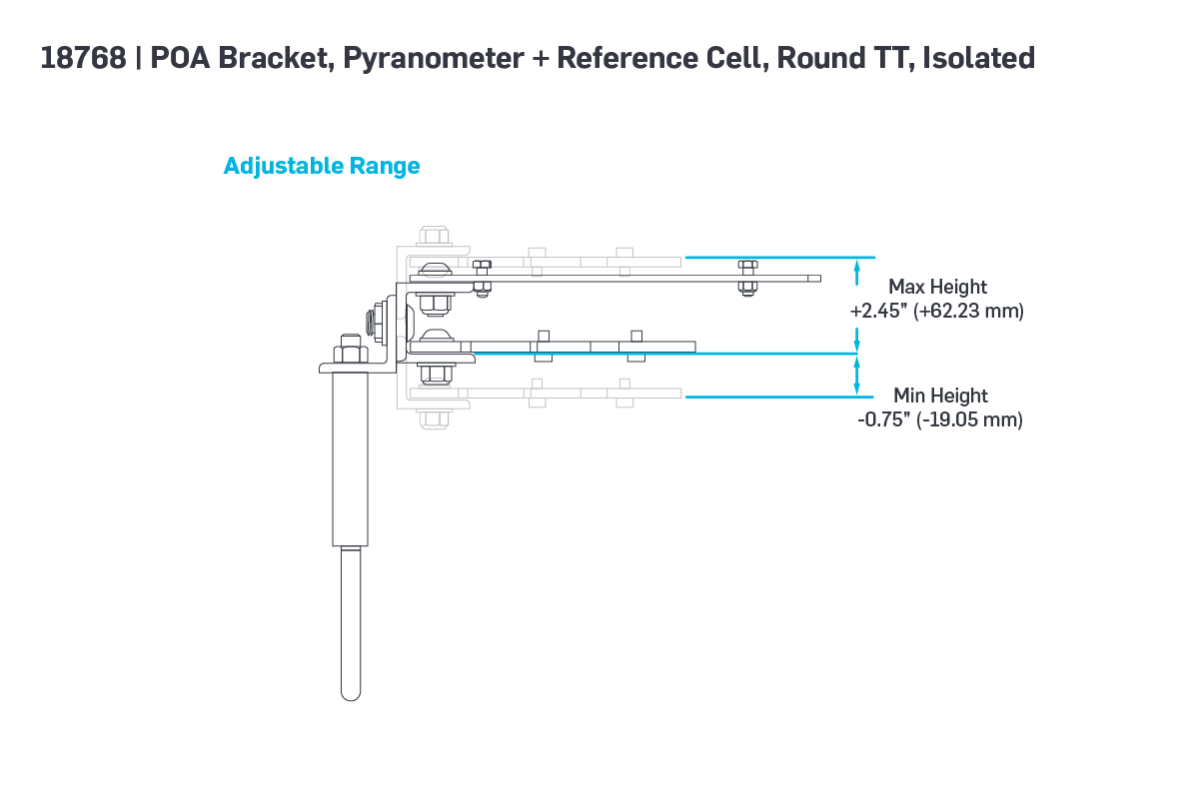

| Offset height | Adjustable height - can be +2" or -1" | Adjustable height - can be +2" or -1" |
| Materials | ||
| Universal mounting plate | Aluminum, electrically isolated from array using nylon washer stack-up | Aluminum, electrically isolated from array using nylon washer stack-up |
