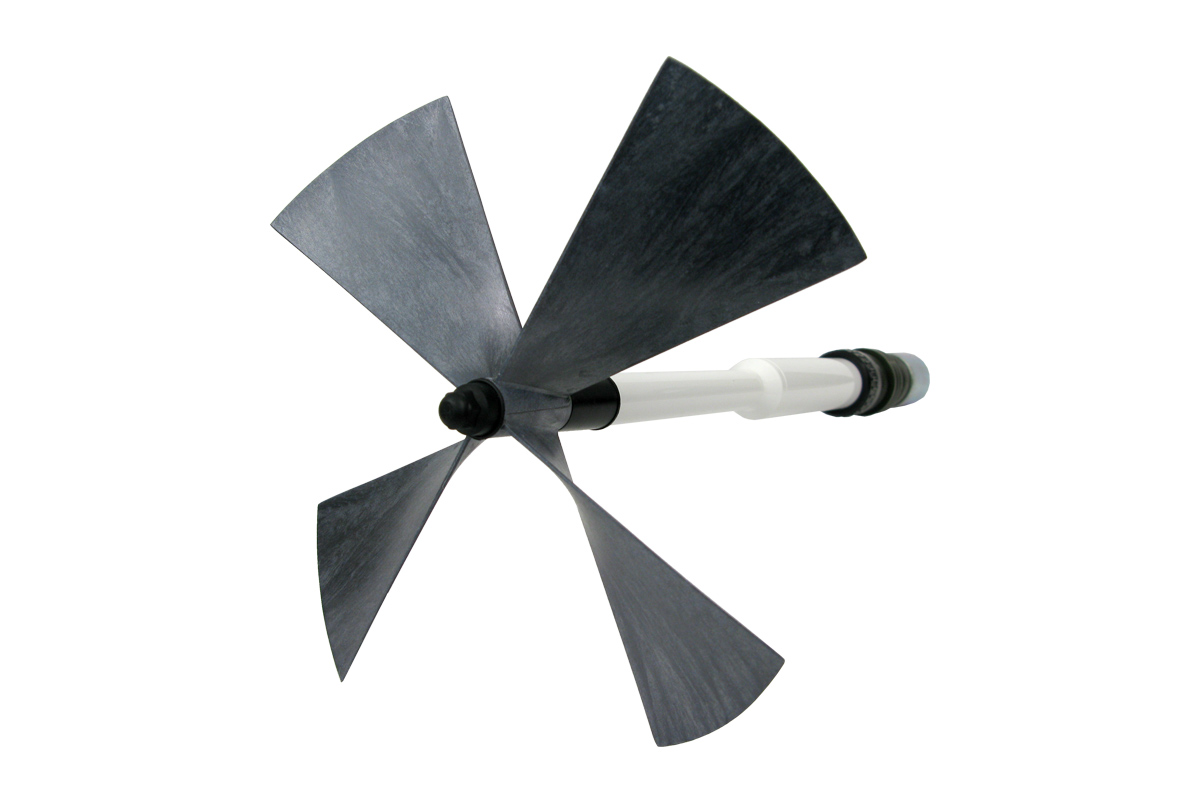

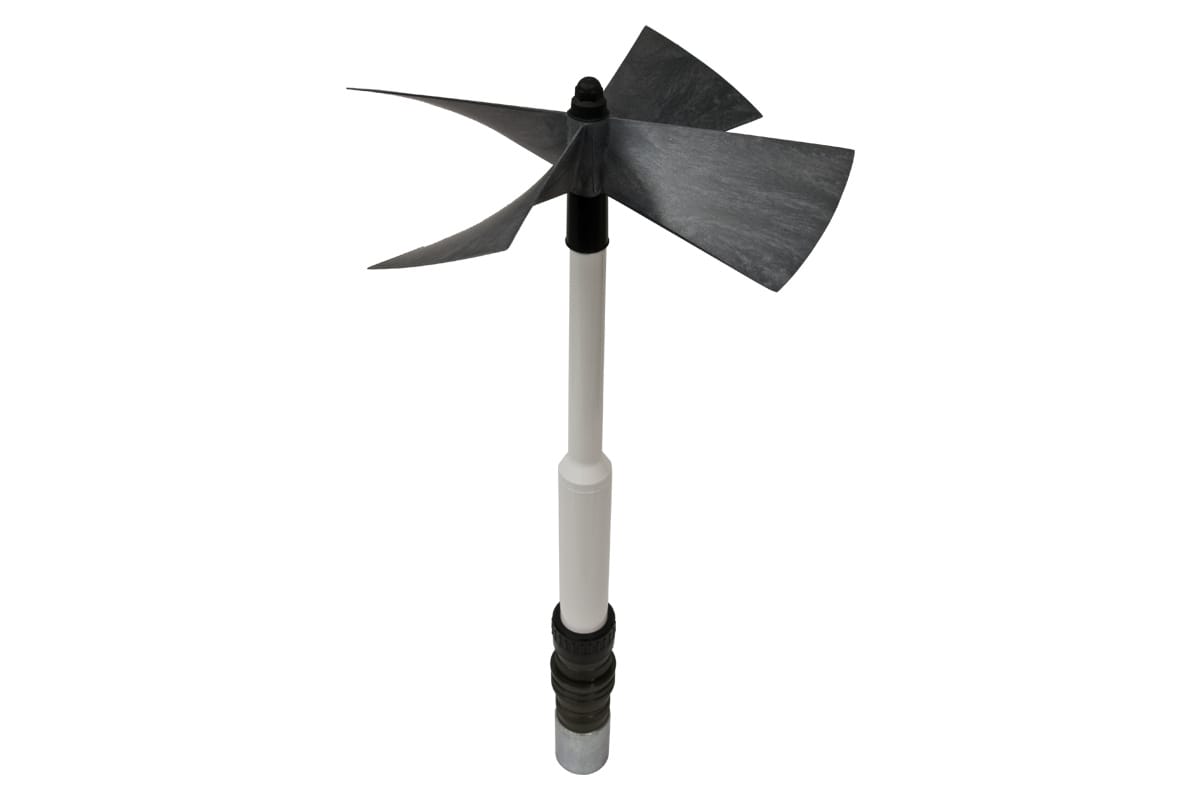

RM Young 27106T Vertical Anemometer
DETAILS
Increasingly, wind farm developers and turbine manufacturers are seeking to understand the vertical component of wind velocity. The RM Young 27106T is a precision air speed measurement instrument designed to meet this need. This dynamic sensor responds specifically to the component of air flow that is parallel to the axis of its rotation.
The RM Young 27106T interfaces with all Symphonie series data loggers. In order to accommodate the output signal of the sensor, your data logger must be equipped with either a (SCM #3745, used with SymphoniePLUS3 and older) or a Pro Signal Conditioning Module (P-SCM #9134, used with SymphoniePRO). An HD single-sided 76", 3/4" IPT mounting boom and a two-conductor sensor cable (of appropriate length) are required to mount the sensor to a met tower.
SPECIFICATION
| RM YOUNG 27106T VERTICAL ANEMOMETER (#2244) | |
|---|---|
| Description | |
| Sensor type | Vertical Propeller Anemometer |
| Applications | Measuring vertical component of wind velocity |
| Sensor range | 0.5 m/s (1.1 mph) to 40 m/s (89 mph) |
| Instrument compatibility | All Symphonie Data Loggers |
| Output signal | |
| Signal type | Millivolt voltage |
| Transfer function | m/s = 0.01800 x mV |
| Accuracy | +/- 1% |
| Recommended load resistance | >10 k Ohms |
| Output signal range | +/- 2250 mV |
| Response characteristics | |
| Swept diameter of rotor | 200 mm (7.9 inches) |
| Installation | |
| Mounting |
|
| Physical | |
| Connections |
|
