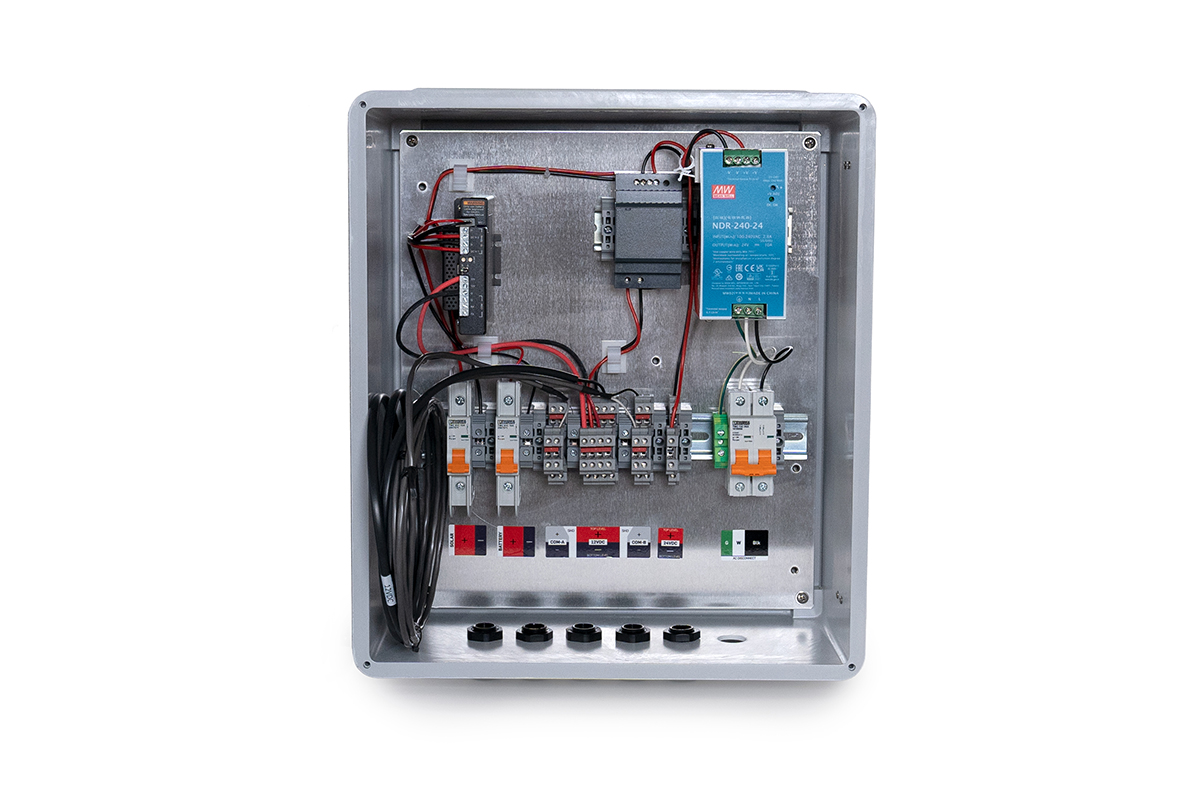

SRM Power Supply | SymphoniePRO
DETAILS
NRG's SRM Power Supply | SymphoniePRO for solar resource monitoring projects offers versatile voltage compatibility (110-240 VAC) for global use, converting AC power to reliable DC power for SymphoniePRO Data Loggers, sensors, and any additional peripherals such as media converters, modems, and radios. The SRM Power Supply | SymphoniePRO comes with various configuration options, including AC-Only, AC with Uninterruptible Power Supply (UPS), and AC with UPS and PV input. All SRM Power Supplies | SymphoniePRO can be configured with different battery and PV kits (see below). Whether you need to add more sensors or expand your power distribution capabilities, these flexible power supplies allow for easy expansion and customization.
PV Kit options include:
- One 100W PV module with PV support brackets
- Two 100W PV [200W total] module with PV support brackets
Battery Kit options include:
- One 100 Ah Battery Bank
- Two 100 Ah Batteries for a 216 Ah battery bank
- Three 100 Ah batteries for a 324 Ah battery bank
Known for its durability and reliability, NRG’s SRM Power Supply | SymphoniePRO is constructed using high-quality materials and components for long-lasting performance in the most challenging environments, ensuring your critical systems remain powered. Additionally, the user-friendly installation process and mounting options simplify deployment and minimizes downtime.
Benefits
- Universal voltage compatibility for effortless integration across regions
- Highly configurable design allows for easy expansion and customization
- Reliable power to data logger, sensors, and additional peripherals ensures uninterrupted data collection
- Durable design offers long-lasting performance and reliability in all climates
- Mounting options enable quick setup, minimizing downtime and simplifying deployment
SPECIFICATION
| 12 VDC (#15225) | 12, 24 VDC, V2 (#16210) | |
|---|---|---|
| Description | ||
| Applications | Power supply for supplemental 12V power for digital sensors, media converters and data logger. Provides grid tied power and an DC power source in case of grid outages with flexible scaling to meet autonomy specifications. | Power supply for supplemental 12V/24V power for digital sensors, media converters and data logger. Provides grid tied power and an uninterruptible DC power source in case of grid outages with flexible scaling to meet autonomy specifications. |
| Compatability | SymphoniePRO Data Logger | SymphoniePRO Data Logger |
| Power requirements | ||
| Grid Supply Voltage | 110 to 240 VAC | 110 to 240 VAC |
| Grid Supply Max Current | 0.8 A @ 115 VAC | 2.5 A @ 115 VAC |
| PV Input | n/a | 1 or 2 100W PV Modules (50 VOC max) |
| Max Charging Current | n/a | 10A |
| Battery Input | 12 VDC Battery Bank | Flexible in Size | 12 VDC Battery Bank | Flexible in Size |
| Power Outputs | ||
| Output Voltage | 12 VDC | 12 and 24 VDC |
| Max Load Current | 1.9 A @ 12 V | 4.6A@12V, 2.5A@24V |
| Installation | ||
| Mounting | Shelter Box Mounts with 2x Hose Clamps | Shelter Box Mounts with 2x Hose Clamps |
| Tools required | Nut driver 5/16", small flat blade screwdriver, Philips screwdriver | Nut driver 5/16", small flat blade screwdriver, Philips screwdriver |
| Cord Grips | 3x 1638 1x 12028 2x 12870 |
2x 12028 | 1x 9.9 - 14mm (0.39 - 0.55") 1x 12590 | 5x 5.5mm (.21") Skinned over 2x 12870 | 2x 5.1 - 6.1mm (0.2 - 0.24") 1x 15364 | 3x 4.6 - 5.6mm (0.18 - 0.22") |
| Cables | 2x 6ft 2C+1 - COM A/B 1x 6ft 2C - 12VDC Supply 1x Battery cable |
2x 6ft 2C+1 - COM A/B 1x 6ft 2C - 12VDC Supply 1x Battery cable |
| Accessories | Battery Kits / PV Kits / Tower Mounted Battery Bracket / Ethernet to Fiber Adapter | Battery Kits / PV Kits / Tower Mounted Battery Bracket / Ethernet to Fiber Adapter |
| Environmental Specifications | ||
| Operating Temperature Range | -30C to 70C ( -22F to 158F) | -20C to 60C ( -4F to 140F) |
| Operating Humidity Range | 0 to 100% RH | 20 to 95% RH |
| Ingres Protection | IP 65 | IP 65 |
| Physical | ||
| Weight | 19.2 lbs | 23 lbs |
| Dimensions | Height - 17.43" Width - 15.43" Depth - 7.34" |
Height - 17.43" Width - 15.43" Depth - 7.34" |
| Materials | ||
| Enclosure | Fiberglass Reinforced Polyester | Fiberglass Reinforced Polyester |
| Mounting Hardware | Stainless Steel Brackets and Hose Clamps | Stainless Steel Brackets and Hose Clamps |
